Tutorial: property-based testing

Catch a bug on the first run

config-reload rewrites its config file in place: it truncates the file, then writes the two lines one at a time. Another process rereads the file meanwhile. The program's own test fails only when a read lands between the truncate and the last write, which few schedules do.

The atomic-replace property fails a run that truncates a file in place, where it should write a new file and rename it over the old one. The property looks at what the program did, not at how the run ended, so schedule 0 already violates it and check finds the bug with no search:

$ rewind check --epoch 1790985600 --schedules 8 --property 'atomic-replace=*.conf' github:fzakaria/rewindvm#config-reload
rewind: packing 62 store paths for config-reload-0.1.0
schedule   0: exited:0       4563 steps  f7b1c7741aba  run d83eda44b1eee197  violates atomic-replace
  atomic-replace: step 3238: process 139 (config) truncated /build/config-reload/app.conf in place, which the run wrote at step 3233; a reader can see it empty or half written
...
schedule   8: exited:2       3778 steps    run 5ed6470d27365add  violates atomic-replace
every schedule violated a property, as schedule 0 did
open it at the step: rewind open d83eda44b1eee197 3238

atomic-replace flags the unsafe write whether or not a reader saw the half-written file. no-read-while-written flags the reader: it fails a run in which a process opens the file for reading while another process has it open for writing. Only some schedules do that, so check searches for one and narrows it to the step that decides it:

$ rewind check --epoch 1790985600 --property 'no-read-while-written=*.conf' github:fzakaria/rewindvm#config-reload | grep -E 'decides it|failing run'
step 3274 decides it: a reschedule there makes the run violate no-read-while-written
failing run violates no-read-while-written: step 3285: process 140 (config) opened /build/config-reload/app.conf for reading while process 139 (config), which opened it for writing at step 3274, had not closed it

--property replaces the default, and you can repeat it to judge runs by several properties. Rewind includes these:

rewind check --help describes each in full.

Assert from inside the program

bank has two threads deposit into one balance without a lock, so one deposit can overwrite another. It includes rewind.h, the C header of the Rewind SDK, and makes two assertions:

/* Another teller is mid-deposit: the case a lock around the read and
 * store has to handle, and the only way to lose a deposit without one. */
int others = atomic_fetch_add(&depositing, 1);
REWIND_SOMETIMES(others > 0, "deposits-concurrent");
...
REWIND_ALWAYS(balance == expected, "balance-adds-up", "balance %ld, expected %ld", balance,
	      expected);

REWIND_ALWAYS must be true every time the program reaches it. A run where it is false violates the sdk property, and check prints the message.

REWIND_SOMETIMES tests the search, not the program: its condition must be true in at least one of the runs check tries. It never fails a run. Here it asks whether any run had both tellers mid-deposit at once.

Under schedule 0 alone, bank passes. That is one run, one teller always finished its deposit before the other started, and check reports the sometimes that never came true:

$ rewind check --epoch 1790985600 --schedules 0 github:fzakaria/rewindvm#bank
...
schedule   0: exited:0       4557 steps  2ffd6b62eb30  run 7316b2ee6b7b0cb6  holds
never true in any run: sometimes "deposits-concurrent"
every property held under the one schedule tried

With its default 64 schedules, check puts both tellers mid-deposit and finds a run that loses a deposit:

$ rewind check --epoch 1790985600 github:fzakaria/rewindvm#bank | grep -E 'decides it|passing:|failing:|failing run violates sdk|^true in'
true in 16 of 17 runs that checked it: sometimes "deposits-concurrent"
step 3258 decides it: a reschedule there makes the run violate same-outcome, sdk
passing: run 7316b2ee6b7b0cb6, schedule 0
failing: run 5257125bf4964a2a, schedule 1 over steps 3258..3259
failing run violates sdk: step 3299: always "balance-adds-up" failed: balance 370, expected 400

Outside Rewind the SDK's calls do nothing, so they can stay in the program. The SDK has a small library for C, Rust, Go, Python, Java and shell, and a pytest plugin and a JUnit 5 extension that mark each test's result.

Check the fix

Clone the repository to edit bank:

$ git clone https://github.com/fzakaria/rewindvm
$ cd rewindvm

In examples/bank/bank.c, hold a mutex from each deposit's read of the balance to its store:

@@ -25,6 +25,9 @@
 /* How many tellers are inside deposit. */
 static atomic_int depositing;

+/* Held from a deposit's read of the balance to its store. */
+static pthread_mutex_t lock = PTHREAD_MUTEX_INITIALIZER;
+
 /* The race: the balance read here is stale by the time it is stored. */
 static void deposit(int teller, long amount)
 {
@@ -33,6 +36,7 @@
 	int others = atomic_fetch_add(&depositing, 1);
 	REWIND_SOMETIMES(others > 0, "deposits-concurrent");

+	pthread_mutex_lock(&lock);
 	long seen = balance;
 	char line[64];
 	int n = snprintf(line, sizeof line, "teller %d: %ld + %ld\n", teller, seen, amount);
@@ -40,6 +44,7 @@
 	if (write(1, line, n) == n) {
 		balance = seen + amount;
 	}
+	pthread_mutex_unlock(&lock);
 	atomic_fetch_sub(&depositing, 1);
 }

$ rewind check --epoch 1790985600 .#bank | grep -E '^true in|^every property'
rewind: packing 62 store paths for bank-0.1.0
true in 64 of 65 runs that checked it: sometimes "deposits-concurrent"
every property held under all 65 schedules

The balance adds up in all 65 runs, and in 64 of them both tellers were mid-deposit at once, so the search made them contend for the lock and the lock held. Without the sometimes, a clean search could also mean the tellers never overlapped.

The sometimes marks the risky state rather than the bug. One true only when a deposit is lost would never come true once the lock is in, and check would report it as never reached on a correct program.

Vary the randomness

hash-order tests a function that collects tags in a Rust HashSet and expects them back in a fixed order. A HashSet's order depends on a random key that Rust draws from the system when it makes the set. In the VM, the system's randomness comes from the run's --seed, so the key is the same on every schedule, every schedule passes, and no number of schedules finds the bug. --seeds 8 runs the job under 8 seeds:

$ rewind check --epoch 1790985600 --seeds 8 --schedules 0 github:fzakaria/rewindvm#hash-order | grep -E '^seed|decides it|passing:|failing:'
rewind: packing 67 store paths for hash-order-0.1.0
seed  0 schedule   0: exited:0       4811 steps  83f239c2e313  run 4274b5643f737d4b
seed  1 schedule   0: exited:2       3557 steps    run b77e3df778b90b00
seed 1 decides it: unperturbed, seed 0 passes and seed 1 fails
passing: run 4274b5643f737d4b, seed 0, schedule 0
failing: run b77e3df778b90b00, seed 1, schedule 0

Seed 1 puts the tags in the other order and the test fails. With --schedules above 0, check also perturbs the schedule under each seed, so one search varies the randomness and the timing together.

In the desktop app

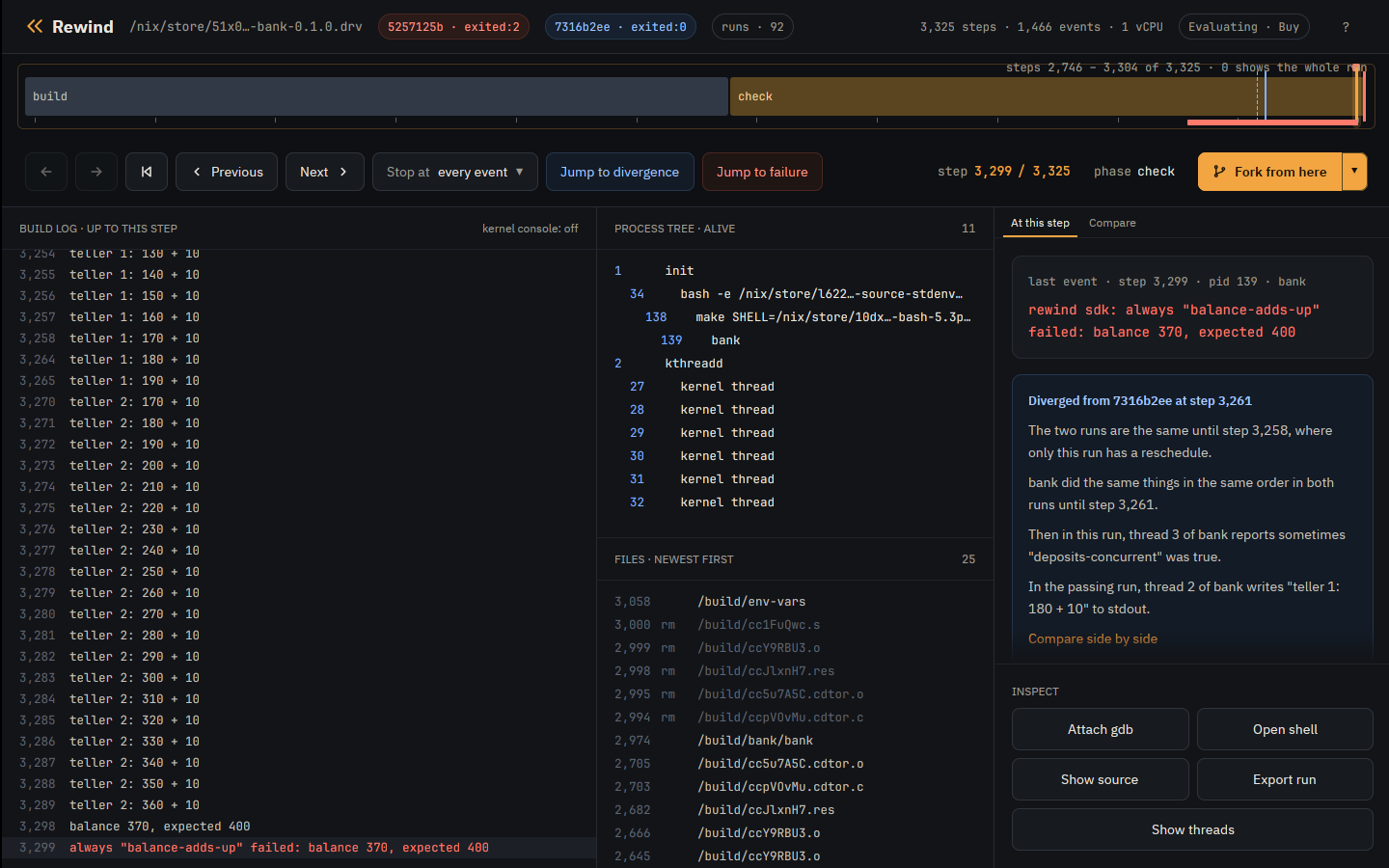

Open the failing bank run beside the passing one, at the assertion:

$ rewind open 5257125b 3299 --compare 7316b2ee

The red mark above the track is the failed assertion; hover over it to see its message. The event card names it too, and Jump to failure goes to it. bank also marks its test's start and result with the SDK, as the pytest and JUnit plugins do for each test. The strip under the track has a span per test: green if it passed, red if it failed.

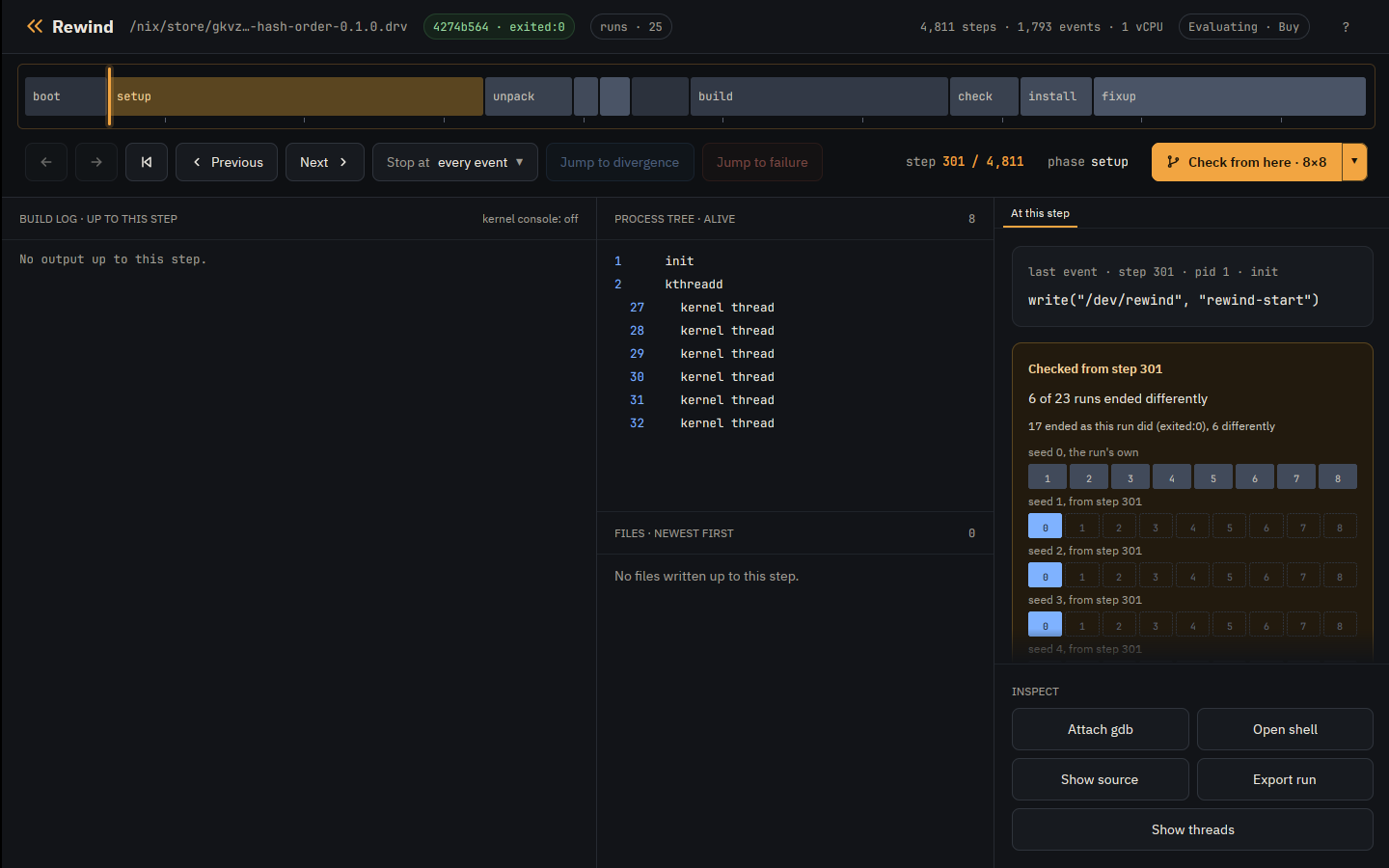

The chevron beside Fork from here also offers Check from here with 8 seeds of 8 schedules. It tries 8 schedules under the run's own seed, and 8 under each of 7 other seeds, as forks reseeded at the playhead. At the start of hash-order's passing run it shows a row of cells per seed, blue where the test failed:

What to read next

• The advanced tutorial: a property as a script, a file of properties, and seeds from a step of a recorded run.
• The SDK: what each call is for, in every language.
• Design: how the search and narrowing work.
