Tutorial: advanced features: Rewind VM

rewind where names the line of the program's own code a thread was on at a step, skipping the C library and, in Rust, the standard library and dependencies. By default it picks the thread of the step's event; at 5105 that is the worker that segfaulted:

$ rewind where f0572500 5105
rewind: process 166 at step 5105; loading symbols for 4 of its files
rewind: fetched 3 source files from the VM
rewind: walking thread 174's stack in gdb
rewind: downloading debug info for libc.so.6; first time only
rewind: downloading debug info for libpthread.so.0; first time only
rewind: downloading debug info for ld-linux-x86-64.so.2; first time only
rewind: downloading the sources of libc.so.6; first time only
process 166 (test_pool_shutdown), thread 174, at step 5105
#0 worker (src/pool.c:77)
      75  			printf("job %d done: %ld\n", job, result & 0xffff);
      76  			fflush(stdout);
>     77  			p->queue->completed++;
      78  		}
      79  	}
called from #1 start_thread (pthread_create.c:454)
called from #2 __GI___clone3 (../sysdeps/unix/sysv/linux/x86_64/clone3.S:78)

--tid picks another thread, on the CPU or not. At step 5105, where the worker faults, the main thread is waiting to join the workers:

$ rewind where f0572500 5105 --tid 166
rewind: process 166 at step 5105; loading symbols for 4 of its files
rewind: read 3 source files fetched from the VM earlier
rewind: walking thread 166's stack in gdb
rewind: downloading the sources of libc.so.6; first time only
process 166 (test_pool_shutdown), thread 166, at step 5105
#7 pool_shutdown (src/pool.c:128)
     126
     127  	for (int i = 0; i < POOL_WORKERS; i++)
>    128  		pthread_join(p->workers[i], NULL);
     129  	pthread_cond_destroy(&p->ready);
     130  	pthread_mutex_destroy(&p->lock);
called from #8 main (tests/test_pool_shutdown.c:24)
called from #9 __libc_start_call_main (../sysdeps/nptl/libc_start_call_main.h:59)

--json prints every frame and which one was chosen. For every frame of every thread, ask gdb for all the stacks of the process:

$ rewind gdb f0572500 5105 --pid 166 -- -batch -ex 'thread apply all bt' 2>/dev/null | grep -E '^Thread|src/|tests/'
#0  0x00005556d620d437 in worker (arg=0x5556f833c010) at src/pool.c:77
Thread 4 (Thread 1.174 (test_pool_shutd, on the CPU)):
#0  0x00005556d620d437 in worker (arg=0x5556f833c010) at src/pool.c:77
Thread 3 (Thread 1.173 (test_pool_shutd)):
#5  worker (arg=0x5556f833c010) at src/pool.c:75
Thread 2 (Thread 1.166 (test_pool_shutd)):
#7  0x00005556d620d5b3 in pool_shutdown (p=p@entry=0x5556f833c010) at src/pool.c:128
#8  0x00005556d620d272 in main () at tests/test_pool_shutdown.c:24
Thread 1 (Thread 1.4194305 (the CPU, in test_pool_shutd 174)):

rewind gdb starts in the thread rewind where looks at, in its innermost frame. --tid and --frame start it elsewhere, with frames numbered as where --json numbers them. In the main thread's frame that where chose, pool_shutdown has already set the queue to NULL:

$ rewind gdb f0572500 5105 --tid 166 --frame 7 -- -batch -ex 'p p->queue'
rewind: process 166 at step 5105; loading symbols for 4 of its files
rewind: read 3 source files fetched from the VM earlier
rewind: gdb at step 5105 of f0572500bc597078
arch_local_irq_restore (flags=6) at ./arch/x86/include/asm/irqflags.h:146
146		return !(flags & X86_EFLAGS_IF);
[Switching to thread 2 (Thread 1.166)]
#0  __syscall_cancel_arch () at ../sysdeps/unix/sysv/linux/x86_64/syscall_cancel.S:56
56		ret
#7  0x00005556d620d5b3 in pool_shutdown (p=p@entry=0x5556f833c010) at src/pool.c:128
128			pthread_join(p->workers[i], NULL);
$1 = (struct queue *) 0x0
[Inferior 1 (process 1) detached]

where and gdb read each thread's registers from the VM kernel's task list, so they work on runs recorded with a guest that lists its tasks, as these were.

In the app, the s key opens the source panel at the line rewind where names, with the thread's frames below it; click a frame to see its line instead. The panel follows the playhead, and each new step takes a few seconds since it forks the run.

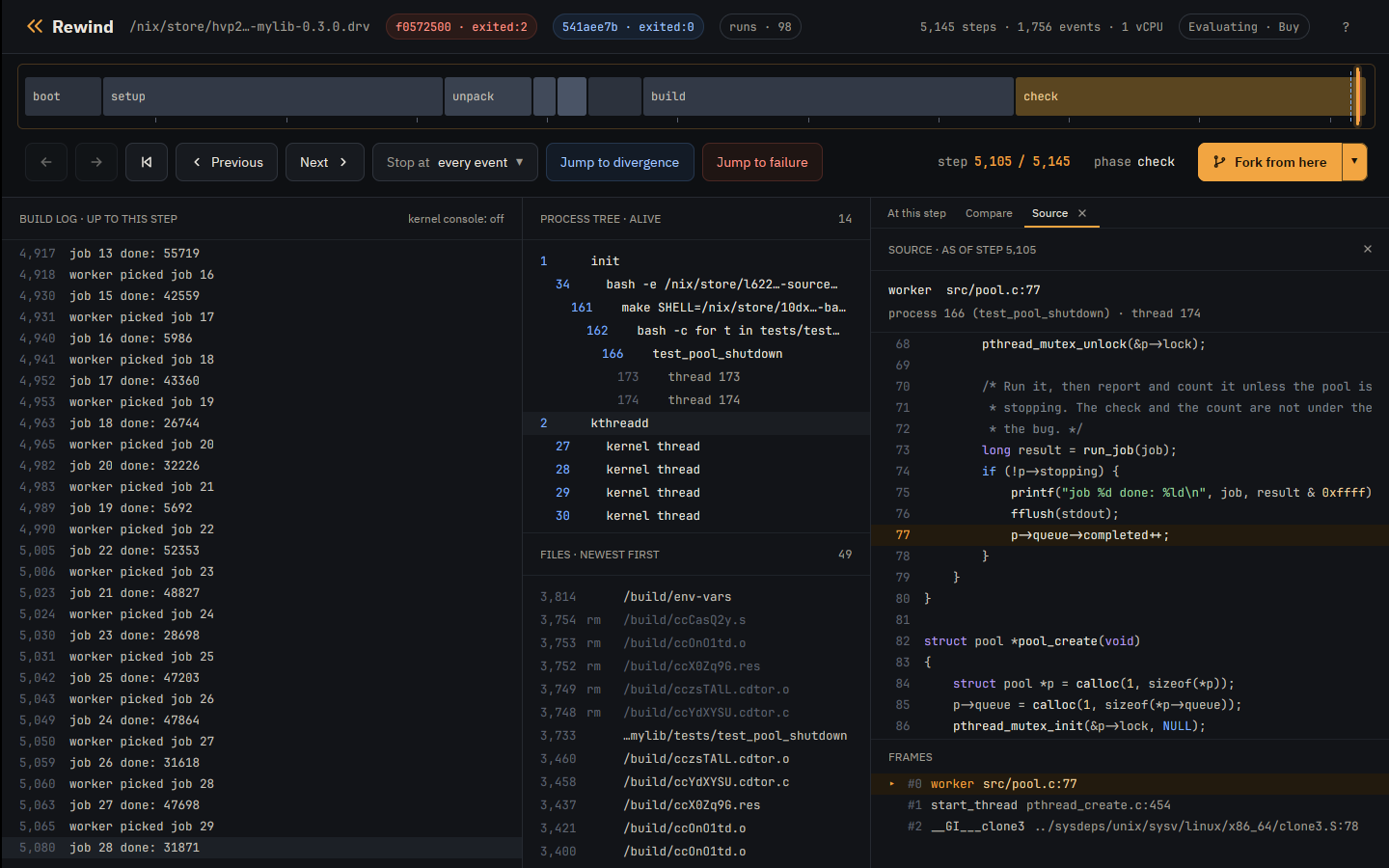

The app's source panel at step 5105 of the failing run: worker at src/pool.c:77 with p->queue->completed++ marked, and the frames worker, start_thread and clone3 below

Find the step that decides it

check names step 5080 as the one that decides it. Its passing run is the same schedule without that step, so the two runs are the same machine until 5080, where only the failing run gets a 1280 µs stall, and everything they do differently follows from it. rewind where names the thread that was on the CPU there:

$ rewind where f0572500 5080
rewind: process 166 at step 5080; loading symbols for 4 of its files
rewind: read 3 source files fetched from the VM earlier
rewind: walking thread 174's stack in gdb
rewind: downloading the sources of libc.so.6; first time only
process 166 (test_pool_shutdown), thread 174, at step 5080
#14 worker (src/pool.c:75)
      73  		long result = run_job(job);
      74  		if (!p->stopping) {
>     75  			printf("job %d done: %ld\n", job, result & 0xffff);
      76  			fflush(stdout);
      77  			p->queue->completed++;
called from #15 start_thread (pthread_create.c:454)
called from #16 __GI___clone3 (../sysdeps/unix/sysv/linux/x86_64/clone3.S:78)

A worker checks p->stopping without the lock, prints its job, and then counts it through p->queue, which pool_shutdown frees. At step 5080 the worker has made its check and is printing; a 1280 µs stall there holds it before the count. The test's main thread runs meanwhile, sees half the jobs done, and shuts the pool down, setting the queue to NULL, and the worker faults on it 25 steps later. Without that step's perturbation, the worker counts first and the test passes.

check --where looks up both threads itself: the one on the CPU at the deciding step, and the one at the failing run's first differing event. Each lookup forks the run and starts gdb, so it is opt-in:

$ rewind check --where --epoch 1790985600 github:fzakaria/rewindvm#mylib 2>/dev/null | sed -n '/^where the threads were/,/first event that differs$/p'
where the threads were:
        5080   166/174   worker (src/pool.c:75), on the CPU at the deciding step
        5105   166/174   worker (src/pool.c:77), at the first event that differs

In the app, the deciding step is a dashed blue mark on the timeline, before the solid one where the runs' events first differ. Zoomed in around the crash:

The app zoomed in around the crash: a dashed blue mark at step 5080 on the timeline, the crash just after it, and the divergence card saying the two runs are the same until step 5080, where only this run has a 1280 µs stall

See which thread held the CPU

The VM has one CPU, so a race is an order of threads. rewind threads replays a window of steps and prints which thread held the CPU, a line per stretch. Around the deciding step, in both runs:

$ rewind threads f0572500 --from 5071 --to 5105
      5071       5071       166/174  test_pool_shutd
      5072       5078          idle  swapper/0
      5079       5081       166/174  test_pool_shutd
      5082       5086       166/173  test_pool_shutd
      5087       5087       166/166  test_pool_shutd
      5088       5099          idle  swapper/0
      5100       5105       166/174  test_pool_shutd

$ rewind threads 541aee7b --from 5071 --to 5105
      5071       5071       166/174  test_pool_shutd
      5072       5078          idle  swapper/0
      5079       5086       166/174  test_pool_shutd
      5087       5090       166/173  test_pool_shutd
      5091       5091       166/166  test_pool_shutd
      5092       5097          idle  swapper/0
      5098       5099       166/174  test_pool_shutd
      5100       5100    kernel 174  test_pool_shutd
      5101       5105          idle  swapper/0

The lines match up to step 5080. From there the threads take the CPU in another order, and in the failing run thread 174 holds it at the crash. A thread that took the CPU and gave it back between two exits is not seen.

In the app, the t key opens the Threads tab: a lane per thread around where the two runs part, this run's above the compared run's, with a bar wherever the thread held the CPU. Ctrl and the wheel zoom the lanes and Shift and the wheel pan them. Clicking a bar moves the playhead there:

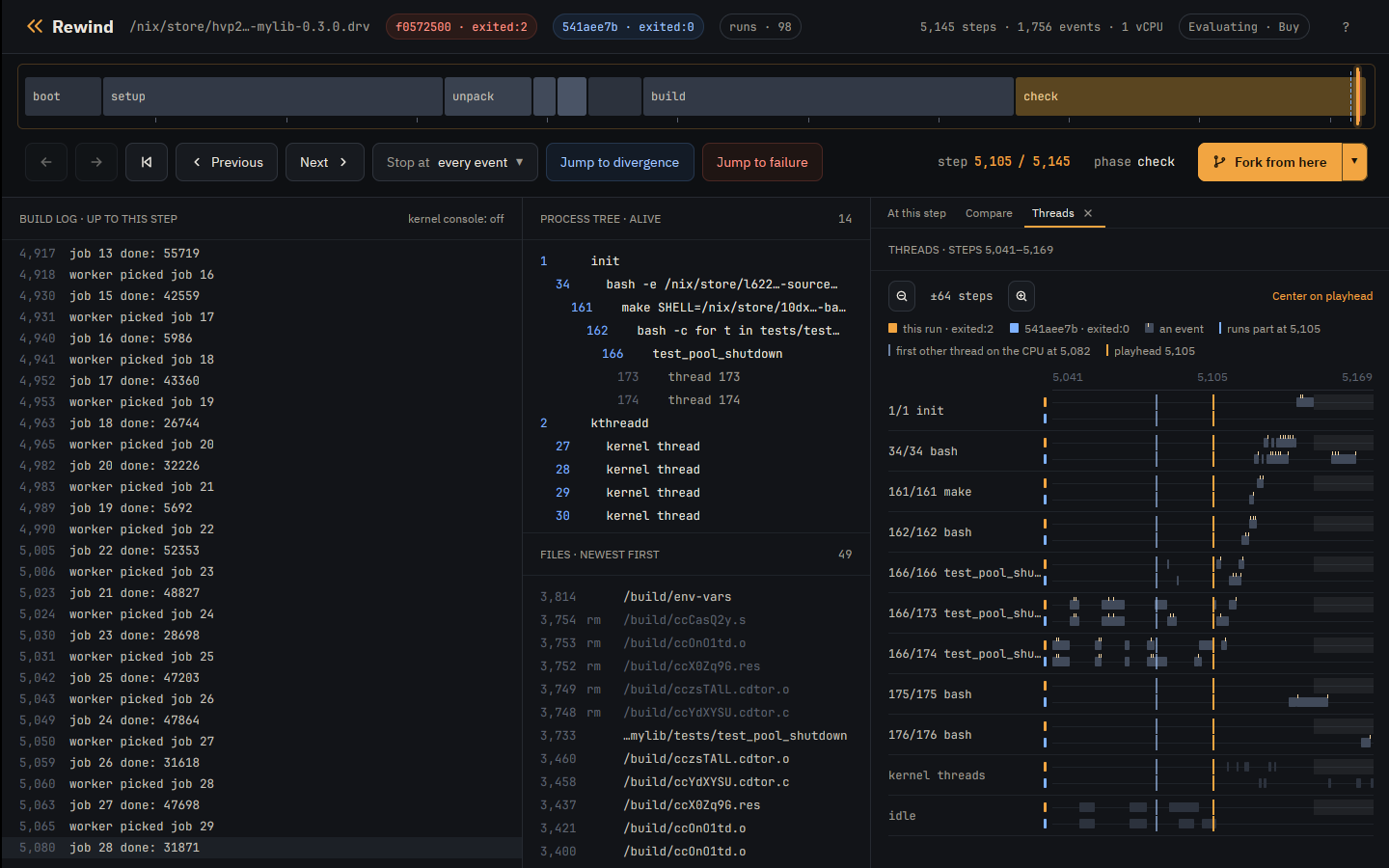

The app's Threads tab around the crash: a lane per thread of test_pool_shutdown, the failing run's above the passing run's, with the worker that crashes taking the CPU in another order after the deciding step

Watch both sides of the race

A watchpoint finds who freed the queue the crash reads. Break in a worker so p is in scope, watch p->queue, and continue:

$ rewind gdb f0572500 5059 -- -batch -ex 'break src/pool.c:74' -ex continue -ex 'watch -l p->queue' -ex 'delete 1' -ex continue -ex 'bt 2' -ex 'break src/pool.c:77 if p->queue == 0' -ex continue -ex 'bt 1'
rewind: step 5059 ran in process 166; loading symbols for 4 of its files
rewind: read 3 source files fetched from the VM earlier
rewind: gdb at step 5059 of f0572500bc597078
arch_local_irq_restore (flags=518) at ./arch/x86/include/asm/irqflags.h:146
146		return !(flags & X86_EFLAGS_IF);
[Switching to thread 4 (Thread 1.174)]
#0  __syscall_cancel_arch () at ../sysdeps/unix/sysv/linux/x86_64/syscall_cancel.S:56
56		ret
Breakpoint 1 at 0x5556d620d3a9: file src/pool.c, line 74.
[Switching to Thread 1.173]

Thread 3 hit Breakpoint 1, worker (arg=0x5556f833c010) at src/pool.c:74
74			if (!p->stopping) {
Hardware watchpoint 2: -location p->queue
[Switching to Thread 1.166]

Thread 2 hit Hardware watchpoint 2: -location p->queue

Old value = (struct queue *) 0x5556f833c090
New value = (struct queue *) 0x0
pool_shutdown (p=p@entry=0x5556f833c010) at src/pool.c:128
128			pthread_join(p->workers[i], NULL);
#0  pool_shutdown (p=p@entry=0x5556f833c010) at src/pool.c:128
#1  0x00005556d620d272 in main () at tests/test_pool_shutdown.c:24
Breakpoint 3 at 0x5556d620d433: file src/pool.c, line 77.
[Switching to Thread 1.174]

Thread 4 hit Breakpoint 3, worker (arg=0x5556f833c010) at src/pool.c:77
77				p->queue->completed++;
#0  worker (arg=0x5556f833c010) at src/pool.c:77
[Inferior 1 (process 1) detached]

The first stop is main nulling the queue in pool_shutdown, the second the worker reading it. Watchpoints are the CPU's four debug registers, so the VM runs at full speed until one fires. watch and awatch work; x86 has no rwatch. At user addresses they stop only in the process gdb started in.

In the app, Attach gdb opens the same session under the timeline:

The app's gdb pane stopped at the watchpoint in pool_shutdown, with the old and new values of p->queue

Follow the fault into the kernel

rewind gdb has the VM kernel's symbols too. Stop where the kernel sends the SIGSEGV, and use its own gdb scripts:

$ rewind gdb f0572500 5080 -- -batch -ex 'break force_sig_fault' -ex continue -ex 'bt 4' -ex 'pipe lx-ps | tail -4' -ex 'pipe lx-dmesg | tail -2'
rewind: step 5080 ran in process 166; loading symbols for 4 of its files
rewind: read 3 source files fetched from the VM earlier
rewind: gdb at step 5080 of f0572500bc597078
arch_local_irq_restore (flags=518) at ./arch/x86/include/asm/irqflags.h:146
146		return !(flags & X86_EFLAGS_IF);
[Switching to thread 4 (Thread 1.174)]
#0  __syscall_cancel_arch () at ../sysdeps/unix/sysv/linux/x86_64/syscall_cancel.S:56
56		ret
Downloading 133.41 K source file /build/linux-7.2.8/kernel/signal.c...
Breakpoint 1 at 0xffffffff812c3cb0: file kernel/signal.c, line 1757.
[Switching to Thread 1.4194305]

Thread 1 hit Breakpoint 1, force_sig_fault (sig=11, code=1, addr=0x108) at kernel/signal.c:1757
1757	{
#0  force_sig_fault (sig=11, code=1, addr=0x108) at kernel/signal.c:1757
#1  0xffffffff81e708d0 in handle_page_fault (regs=0xffffc900001dbf58, error_code=6, address=264) at arch/x86/mm/fault.c:1483
#2  exc_page_fault (regs=0xffffc900001dbf58, error_code=6) at arch/x86/mm/fault.c:1536
#3  0xffffffff810012a6 in asm_exc_page_fault () at ./arch/x86/include/asm/idtentry.h:595
0xffff888003810fc0  162  bash
0xffff888003810000  166  test_pool_shutd
0xffff888003bbde80  173  test_pool_shutd
0xffff888003bbcec0  174  test_pool_shutd
[    0.202888] test_pool_shutd[174]: segfault at 108 ip 00005556d620d437 sp 00007feee6e68e10 error 6 in test_pool_shutdown[1437,5556d620d000+1000] likely on CPU 0 (core 0, socket 0)
[    0.202893] Code: fa 48 8d 35 2a 0c 00 00 bf 02 00 00 00 b8 00 00 00 00 e8 ac fc ff ff 48 8b 05 b5 2b 00 00 48 8b 38 e8 8d fc ff ff 49 8b 46 58 <83> 80 08 01 00 00 01 e9 b5 fe ff ff 55 48 89 e5 41 54 53 be 78 00
[Inferior 1 (process 1) detached]

The kernel's DWARF comes from rewindvm.cachix.org with Nix, and from the debug tarball next to rewind without. The app's build log shows the kernel's messages beside the program's with kernel console on:

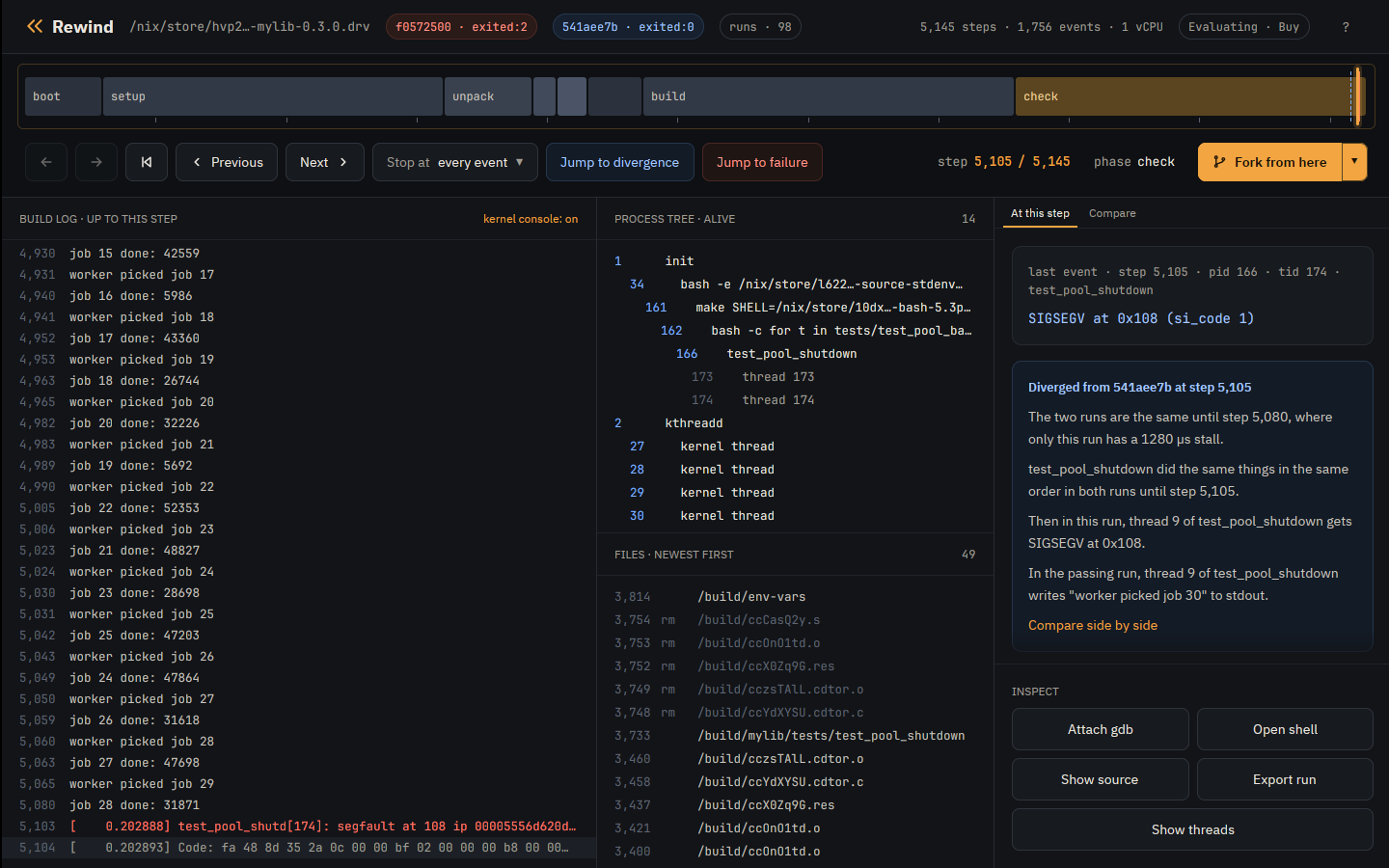

The app's build log with the kernel console on, showing the segfault report under the test's output

Use your own gdb

--listen serves the fork for a gdb started elsewhere, such as an IDE's, and prints the command line that loads the same symbols:

$ rewind gdb f0572500 5105 --listen 127.0.0.1:1234
rewind: step 5105 ran in process 166; loading symbols for 4 of its files
rewind: read 3 source files fetched from the VM earlier
rewind: gdb at step 5105 of f0572500bc597078; connect with: gdb -q -iex 'add-auto-load-safe-path /nix/store/h4wfwic161kxrr74jlzla5lsm28hgary-glibc-2.44-25' -iex 'set debuginfod enabled on' -iex 'set debuginfod urls http://127.0.0. ...

Bring tools into the VM

rewind shell --with adds a Nix package to the shell, without changing the run. Here binutils disassembles the faulting instruction:

$ printf 'objdump -d --no-show-raw-insn --start-address=0x142c --stop-address=0x143e tests/test_pool_shutdown | tail -4; exit\n' | rewind shell f0572500 5105 --pid 166 --with nixpkgs#binutils
rewind: packing 21 store paths for --with
rewind: a shell at step 5105 of f0572500bc597078; exit it to leave
[rewind] /build/mylib # objdump -d --no-show-raw-insn --start-address=0x142c --stop-address=0x143e tests/test_pool_shutdown | tail -4; exit
    142c:	mov    (%rax),%edi
    142e:	call   10c0 <fflush@plt>
    1433:	mov    0x58(%r14),%rax
    1437:	addl   $0x1,0x108(%rax)

In the app, Open shell starts a shell at the playhead in the terminal pane, in the crashing process's working directory:

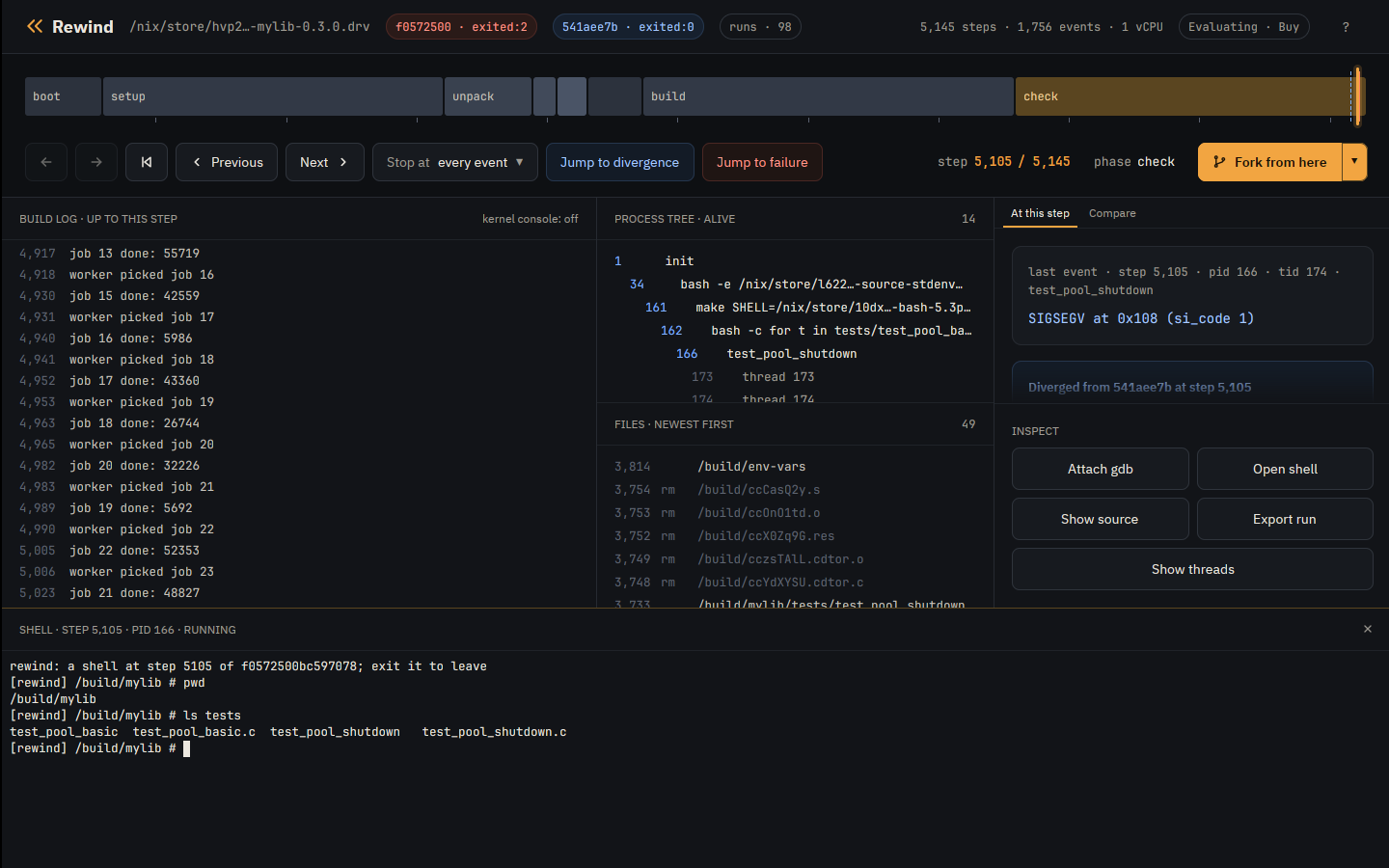

The app's shell pane at step 5105 of the failing run, in /build/mylib, after pwd and ls tests

Give programs more CPUs

The VM has one vCPU, so by default programs see one CPU and Nix builds run one job at a time. --cores tells them there are more, and the extra threads interleave on the one vCPU:

$ rewind nix --cores 4 --epoch 1790985600 github:fzakaria/rewindvm#mylib
...
rewind: run 27a62ad4170c676c exited:0 after 6209 steps, 0.217s virtual, 1.254s wall (poweroff)
/nix/store/f6a9gy362szw6nxx3ikrklr8glr6rdln-mylib-0.3.0 a9d703ba89774f3d  matches your store, rewindvm.cachix.org

$ printf 'nproc; echo $NIX_BUILD_CORES; exit\n' | rewind shell 27a62ad4 2486 --pid 110
rewind: a shell at step 2486 of 27a62ad4170c676c; exit it to leave
[rewind] /build/mylib # nproc; echo $NIX_BUILD_CORES; exit
4
4

Run Go programs with GOMAXPROCS=1 above one core: Go's garbage collector spins waiting for a thread that never runs.

Steer the perturbation

check --schedules N tries more or fewer schedules, --all all of them. rewind fork asks which schedules fail from a given step:

$ rewind fork f0572500 5005 --schedule 1 --quiet
rewind: run 3b8804c10ca07001 exited:2 after 5164 steps, 0.202s virtual, 0.506s wall (poweroff)
rewind: the fork first differs from its parent at step 5026
rewind: open it beside its parent in the desktop app: rewind open 3b8804c10ca07001 5026 --compare f0572500bc597078

$ rewind fork f0572500 5005 --schedule 2 --quiet
rewind: run 62a024334bb23811 exited:0 after 6560 steps, 0.221s virtual, 0.359s wall (poweroff)
rewind: the fork first differs from its parent at step 5024
rewind: open it beside its parent in the desktop app: rewind open 62a024334bb23811 5024 --compare f0572500bc597078

$ rewind fork f0572500 5005 --schedule 3 --quiet
rewind: run 64002726efc22ecb exited:2 after 5147 steps, 0.203s virtual, 0.282s wall (poweroff)
rewind: the fork first differs from its parent at step 5090
rewind: open it beside its parent in the desktop app: rewind open 64002726efc22ecb 5090 --compare f0572500bc597078

$ rewind fork f0572500 5005 --schedule 4 --quiet
rewind: run 39aa9d79584a0c04 exited:0 after 6735 steps, 0.222s virtual, 0.335s wall (poweroff)
rewind: the fork first differs from its parent at step 5024
rewind: open it beside its parent in the desktop app: rewind open 39aa9d79584a0c04 5024 --compare f0572500bc597078

The app's Runs tab, or the runs pill in its header, shows every run of the build, with forks under the run and step they branched from:

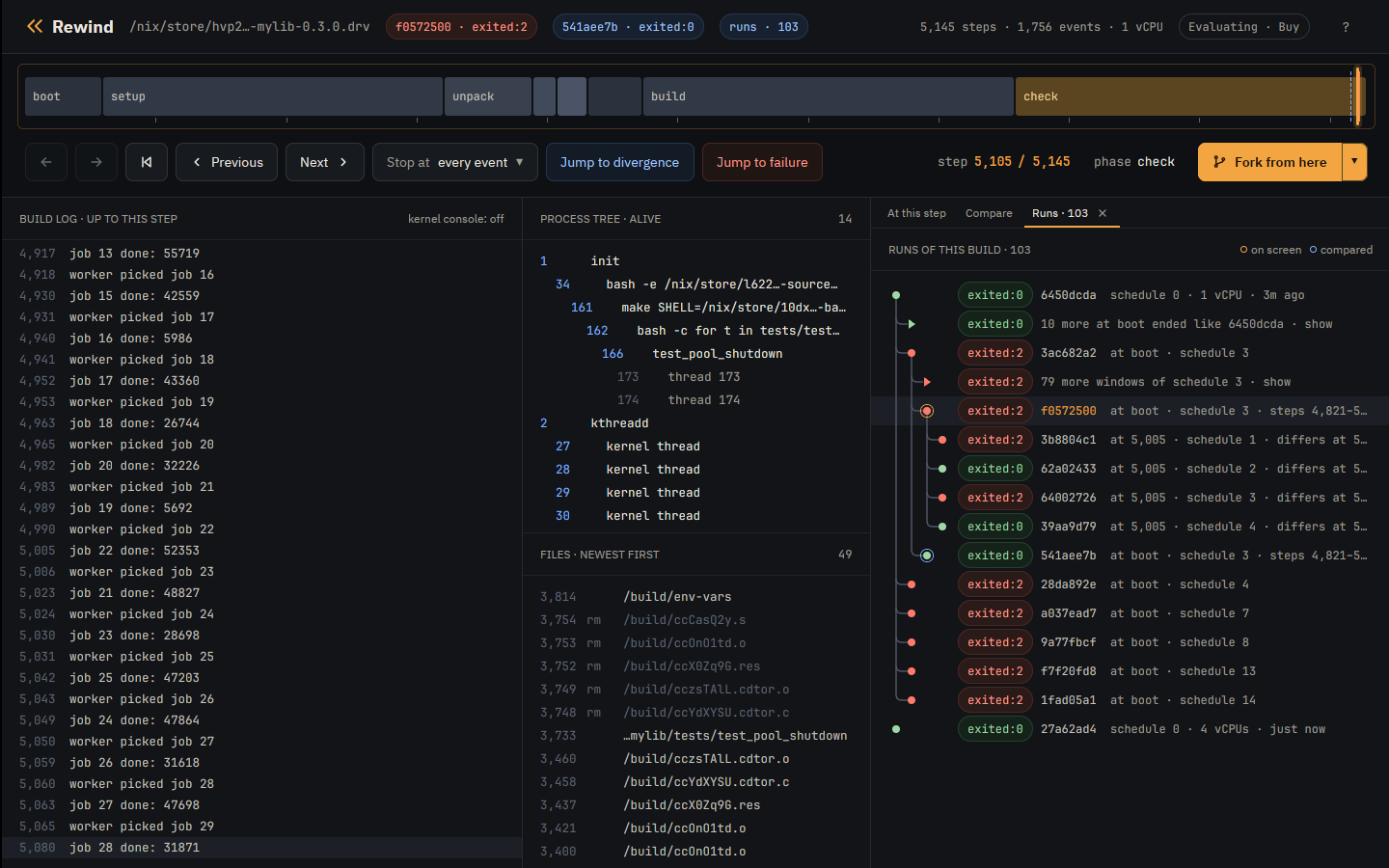

The app's Runs panel: check's schedules, and the forks of the failing run, failing and passing

Fork from here forks the run at the playhead with the next schedule. Clicking a run opens it compared with the run it hangs under; right-clicking offers more.

Find a run again

A command takes a run by its id or a prefix of it, by @ for the newest run and @2, @3 and on for the ones before it, by name, or by directory. rewind ls lists runs newest first, and filters them:

$ rewind ls -n 3
39aa9d79584a0c04  exited:0          6735 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 4)
64002726efc22ecb  exited:2          5147 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 3)
62a024334bb23811  exited:0          6560 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 2)

$ rewind ls --forks-of f0572500 --status failed
64002726efc22ecb  exited:2          5147 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 3)
3b8804c10ca07001  exited:2          5164 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 1)

--name and --since (30m, 2h, 7d or a date) filter too.

rewind open starts the app on a run, at a step and beside another run. check and fork print the command that opens what they made:

$ rewind open f0572500 5105 --compare 541aee7b

Rebuild a run exactly

A run's id is the hash of its inputs, which its manifest.json lists, so the same command makes the same run on a machine with the same CPU vendor and guest. rewind show prints that command with every input spelled out, including the epoch, which defaults to the start of the day the run was made. For a fork it prints its parents' commands first. @, the newest run, is the schedule 4 fork:

$ rewind show @
39aa9d79584a0c04  exited:0          6735 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 4)
...
rewind nix /nix/store/...-mylib-0.3.0.drv --epoch 1790985600 --schedule 3 --schedule-from 4821 --schedule-until 5081 --clock branches --name mylib-0.3.0  # f0572500bc597078
rewind fork f0572500bc597078 5005 --schedule 4  # 39aa9d79584a0c04

The failing run's command makes it again, with the same id:

$ rewind show f0572500 | tail -1 | sh
...
rewind: run f0572500bc597078 exited:2 after 5145 steps, 0.203s virtual, 0.646s wall (poweroff)

Compare any two runs

rewind diff compares every event of two runs, where check compares only the failing program's:

$ rewind diff 541aee7b f0572500
first difference at event 1733: step 5081 on the left, step 5103 on the right
  both        5063   166/173   write(1, "job 27 done: 47698\n")
  both        5065   166/173   write(1, "worker picked job 29\n")
  both        5080   166/174   write(1, "job 28 done: 31871\n")
  left        5081   166/174   write(1, "worker picked job 30\n")
  left        5088   166/173   write(1, "job 29 done: 509\n")
  left        5089   166/173   write(1, "worker picked job 31\n")
  left        5099   166/174   thread exit(test_pool_shutd) exited:0
  right       5103     0/0     console "[    0.202888] test_pool_shutd[174]: segfault at 108 ip 00005556d620d437 sp 00007feee6e68e10 error 6 in test_pool_shutdown[1437,5556d620d000+1000] likely on CPU 0 (core 0, socket 0)"
  right       5104     0/0     console "[    0.202893] Code: fa 48 8d 35 2a 0c 00 00 bf 02 00 00 00 b8 00 00 00 00 e8 ac fc ff ff 48 8b 05 b5 2b 00 00 48 8b 38 e8 8d fc ff ff 49 8b 46 58 <83> 80 08 01 00 00 01 e9 b5 fe ff ff 55 48 89 e5 41 54 53 be 78 00"
  right       5105   166/174   SIGSEGV code=1 addr=0x108
  right       5108   166/166   SIGSEGV code=0 addr=0x0

In the app, any run compared with another shows where they part, on the timeline and in the divergence card:

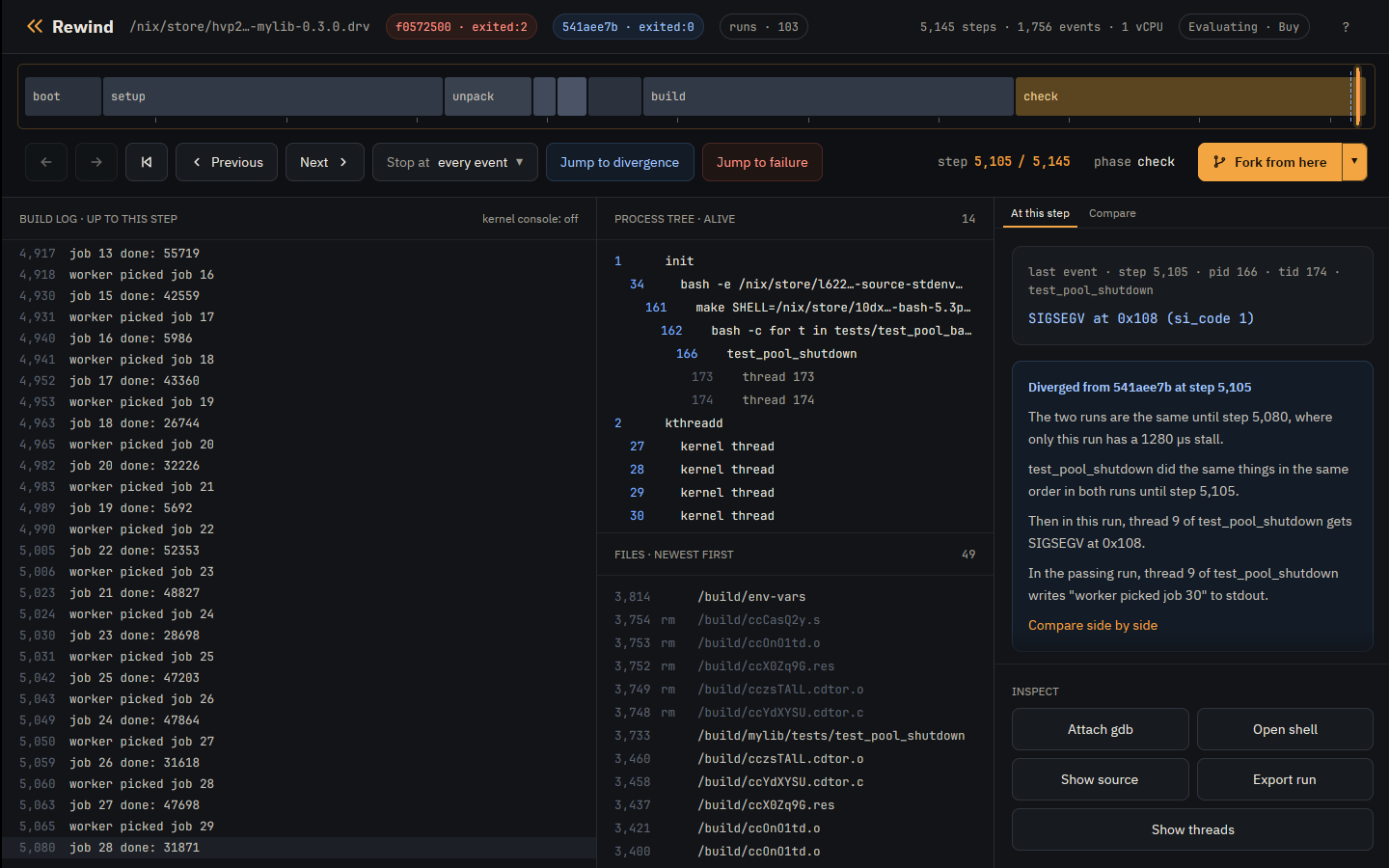

The app at the step where the failing run leaves the passing one, with the divergence card naming both threads' writes

The card's Compare side by side link opens the Compare tab: the last events both runs shared, then each run's next events side by side, with what differs in amber. The x key swaps to the other run at the matching step, and x again comes back:

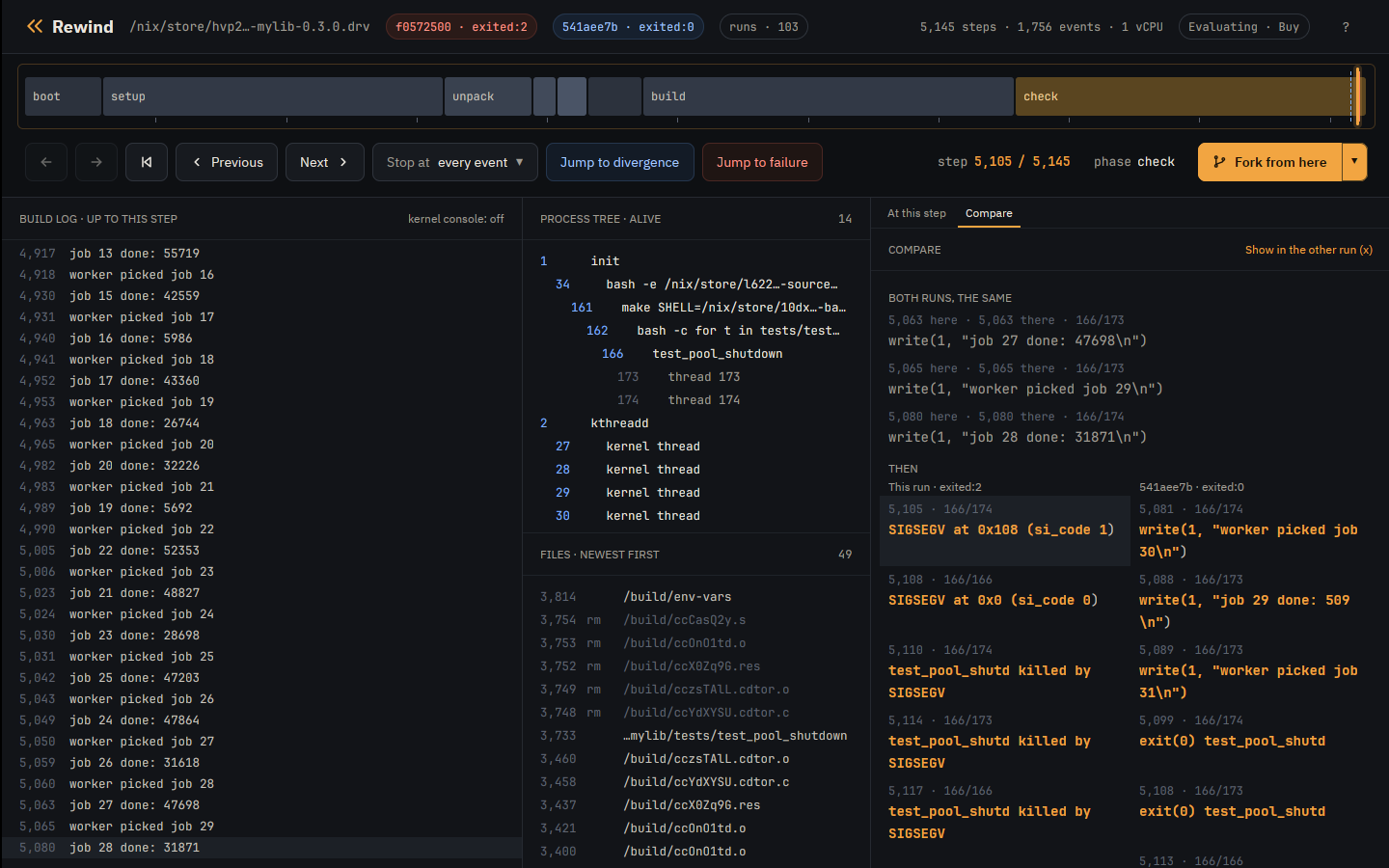

The app's Compare tab: the writes both runs made before they part, then the failing run's SIGSEGV beside the passing run's write, each run's text in full with what differs in amber

Script it

run, nix and fork exit with the job's status, as a shell would report it, so a shell loop can ask which schedules fail from a step:

$ for s in 5 6 7 8; do rewind fork f0572500 5005 --schedule $s --quiet 2>/dev/null; echo "schedule $s: exit $?"; done
schedule 5: exit 0
schedule 6: exit 0
schedule 7: exit 0
schedule 8: exit 0

check exits 1 when a run fails a property, by default by ending differently from schedule 0, and 0 when none does, diff 1 when the runs differ, cat 3 when the file did not exist at the step, and doctor 1 when this machine cannot record runs. With --json, commands print JSON for a program to read in place of their text: one object, or from ls and events one a line. check --json lists each run it tried under schedules, with the properties the run violated under violations.

$ rewind ls --forks-of f0572500 --status failed --json | jq -r .id
64002726efc22ecb
3b8804c10ca07001

$ rewind diff 541aee7b f0572500 --json | jq -c '.divergence | {left_step, right_step}'
{"left_step":5081,"right_step":5103}

Judge runs by properties

By default check fails a run that ends differently from schedule 0. --property replaces that test with others, such as no-crash or single-writer=GLOB, and can be repeated. rewind check --help lists the built-in properties, and the properties tutorial explains each one.

A program that calls the Rewind SDK asserts from the inside: always must hold every time it runs, and sometimes must hold in at least one run. Check adds the sdk property when schedule 0 calls the SDK, and the app marks each failed assertion in red above the track.

A property can also be a script. It gets the run in $REWIND_RUN, can read it with rewind log, rewind events --json or rewind cat, and exits 0 when the run is correct or 1 with the reason on its first line. This one checks that bank's deposits add up:

$ cat adds-up.sh
#!/bin/sh
# The deposits add up: bank prints its balance and what it expected.
line=$(rewind log "$REWIND_RUN" | grep "^balance ")
test "$line" = "balance 400, expected 400" && exit 0
echo "$line"
exit 1

$ rewind check --epoch 1790985600 --property script=./adds-up.sh github:fzakaria/rewindvm#bank | grep -E 'decides it|failing run violates adds-up'
rewind: packing 62 store paths for bank-0.1.0
step 3258 decides it: a reschedule there makes the run violate adds-up, sdk
failing run violates adds-up: balance 370, expected 400

--properties reads properties from a file, one a line, so a repository can keep them beside its tests. A script's path in the file is relative to the file's directory:

$ cat rewind.properties
# What a correct bank run is.
no-crash
script=adds-up.sh

$ rewind check --epoch 1790985600 --properties rewind.properties github:fzakaria/rewindvm#bank | grep 'decides it'
step 3258 decides it: a reschedule there makes the run violate adds-up, sdk

Count the schedules that fail from a step

rewind fork tries one schedule from a step. check --run tries many, each a fork at --schedule-from, with the run itself as schedule 0. --no-narrow stops at the count. From the deciding step of the passing run:

$ rewind check --run 541aee7b --schedule-from 5080 --schedules 16 --all --no-narrow
schedule   0: exited:0       6355 steps  a9d703ba8977  run 541aee7b082b254a
schedule   1: exited:2       5151 steps    run b1fc0ca26853d2d6
schedule   2: exited:0       6622 steps  a9d703ba8977  run d0a63e55c6e977e8
schedule   3: exited:2       5147 steps    run ecacaa2d59cfd019
schedule   4: exited:0       6656 steps  a9d703ba8977  run e9d4ab63a6e0e7e3
schedule   5: exited:0       6630 steps  a9d703ba8977  run 69f42840983adde0
schedule   6: exited:0       6670 steps  a9d703ba8977  run a8b9d9abd06f8247
schedule   7: exited:0       6666 steps  a9d703ba8977  run f3a6f9eb2106f4d2
schedule   8: exited:2       5146 steps    run 0e0d5ad51136996e
schedule   9: exited:0       6528 steps  a9d703ba8977  run 935139a1d0ab1ee2
schedule  10: exited:0       6613 steps  a9d703ba8977  run a4192791103562d3
schedule  11: exited:0       6585 steps  a9d703ba8977  run 4bfa81f744f6b56e
schedule  12: exited:2       5144 steps    run bbb9ba7e86399b16
schedule  13: exited:0       6662 steps  a9d703ba8977  run 54eb1e0dcfa47308
schedule  14: exited:0       6663 steps  a9d703ba8977  run 6ead44db0dd69191
schedule  15: exited:0       6633 steps  a9d703ba8977  run b773bf1f0ea1f5ae
schedule  16: exited:0       6651 steps  a9d703ba8977  run bd127f11cd2d2fa4
4 of 16 perturbed schedules ended differently

4 of the 16 crash. Without --no-narrow, check --run narrows the first of them to the step that decides it, as for a build.

In the app, the chevron beside Fork from here turns it into Check from here, which runs the schedules from the playhead and fills a cell per schedule: grey for ended as this run did, blue for differently. Pick a cell to compare with or open its run:

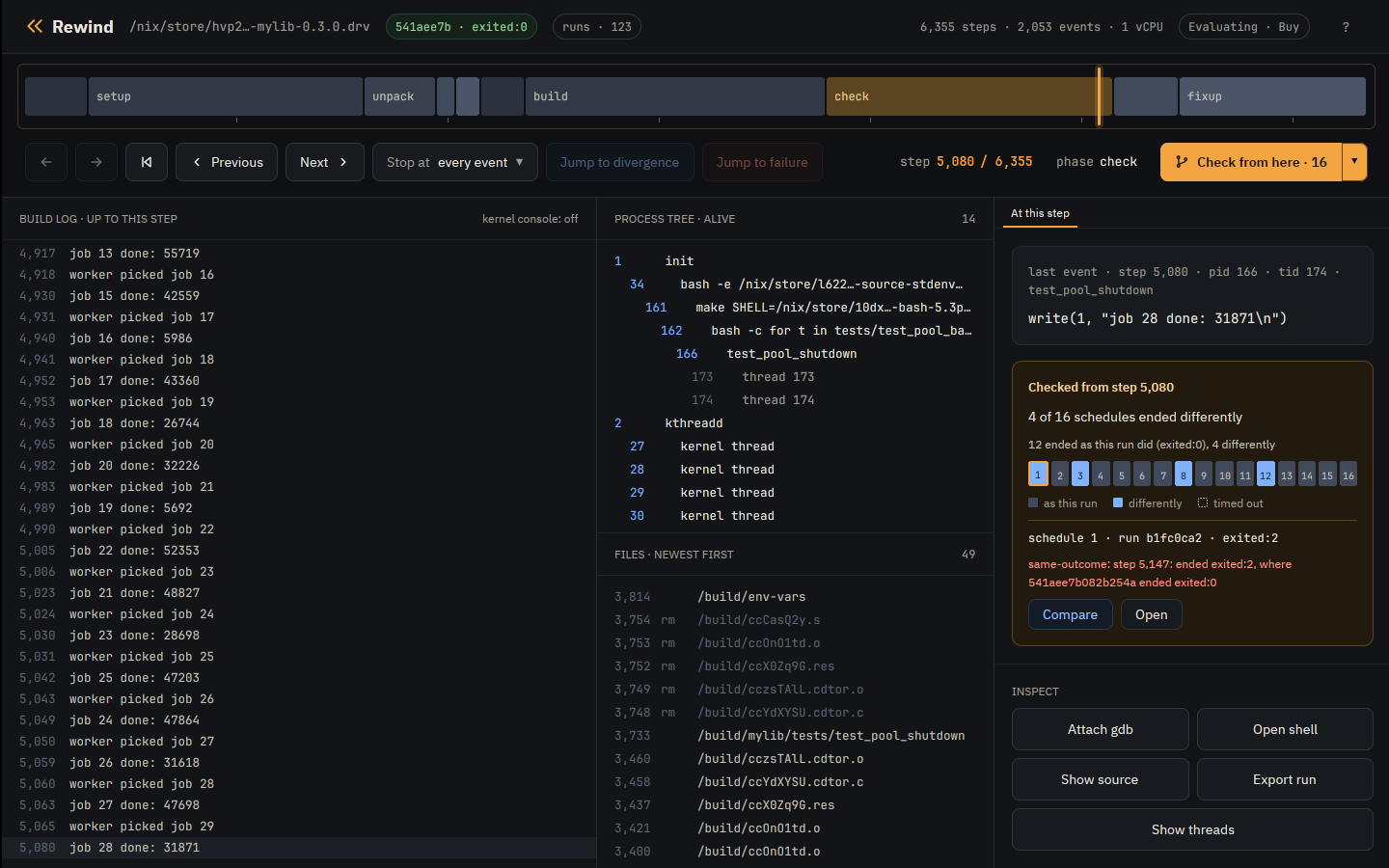

The app after Check from here at step 5080 of the passing run: a card counting how the 16 schedules ended, a cell per schedule, the first picked with its run and Compare and Open

Try other seeds from a step

A fork keeps its parent's randomness unless you reseed it. rewind fork --seed reseeds the VM's randomness at the fork's step. check --run --seeds tries the run's own seed and several others, each a fork of the run reseeded at --schedule-from. hash-order's test depends on the order of a Rust HashSet, which Rust draws from that randomness:

$ rewind nix -q --epoch 1790985600 --name hash-order github:fzakaria/rewindvm#hash-order
...
/nix/store/8fzgvvjf4iffwijx3njlhg40m0xxnlw4-hash-order-0.1.0 83f239c2e3135166  not in your store or 6 caches

$ rewind check --run hash-order --seeds 8 --schedules 0 | grep -E 'decides it|passing:|failing:'
seed 1 decides it: unperturbed, seed 0 passes and seed 1 fails
passing: run 4274b5643f737d4b, seed 0, schedule 0
failing: run 9db946d65544b3db, seed 1 from step 301, schedule 0

Move around a long run

Builds of larger projects run to hundreds of thousands of steps. The app has keys to jump to a step, step between events of one kind, bookmark, search and zoom the timeline. The ? key lists them all:

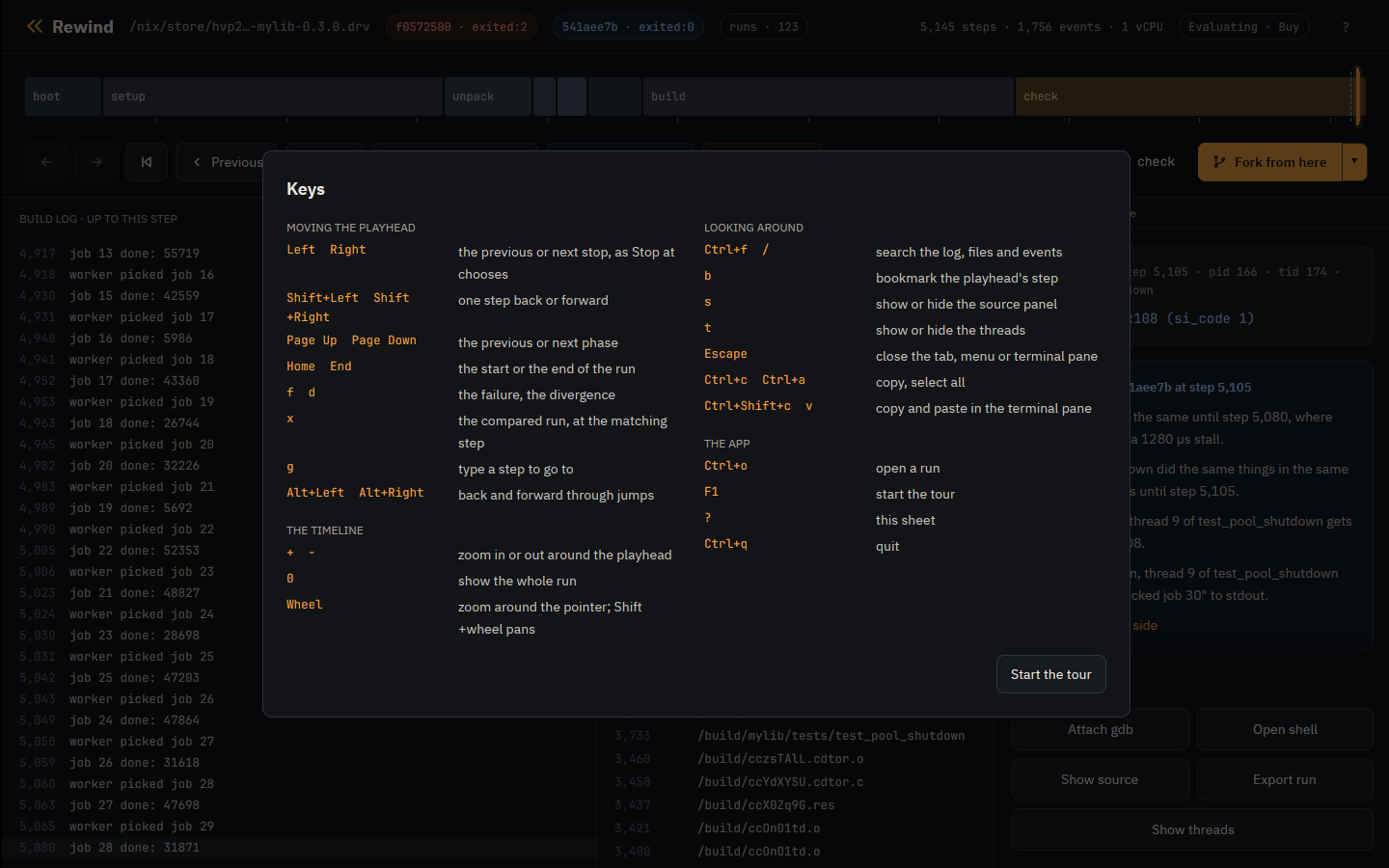

The app's sheet of keys: moving the playhead, the timeline, looking around, and the app

Hand a failure to someone else

$ rewind export f0572500 --replayable -o crash.rwd
rewind: wrote crash.rwd (201.3 MB)

$ REWIND_HOME=elsewhere rewind import crash.rwd
f0572500bc597078  exited:2          5145 steps  mylib-0.3.0

$ REWIND_HOME=elsewhere rewind replay f0572500
identical: 1756 events over 5145 steps

A replayable export carries the keyframes, the image and the VM's kernel, and replays on any machine with the same CPU vendor. Without --replayable it is the events alone, 18.0 KB: enough to read and to scrub in the app, whose Export button writes the replayable kind. Both kinds carry the run's bookmarks.

Which clock

$ rewind pmu status
cpu: AMD Zen (family 25)
amd workaround (MSR 0xc0011020 bit 54): set by `rewind pmu enable` this boot
perf_event_paranoid: 2
self-test: 40046500 and 40046500 branches, exact at every exit
runs will use counter time

With counter time the VM's clock follows the work done inside it; with exit time computation takes no virtual time. --clock picks one. Counter time explains. rewind doctor checks the clock with KVM, gdb and the rest of what rewind uses, and says what to do about each problem.

Find where a run hung

A thread gives up the VM's one CPU only at a step, so a loop that makes no system call keeps it, and the run hangs. --timeout stops a run after that many seconds on your machine. When the guest had gone a second or more without an exit, rewind says where it was stuck. A program that spins, built static with its symbols:

$ printf 'volatile unsigned long n;\nint main(void) { for (;;) n++; }\n' > spin.c
$ mkdir -p spin/bin
$ nix shell nixpkgs#pkgsStatic.stdenv.cc -c x86_64-unknown-linux-musl-cc -static -g -o spin/bin/spin spin.c

$ rewind run --root spin --timeout 5 --name spin -- /bin/spin
rewind: run d887cc181cc8a557 timed-out after 309 steps, 0.002s virtual, 5.008s wall (timed out computing without exits for 4.4s, in user space in main+11 (spin.c:2), process 34 (spin))

A run that timed out while still making exits was slow rather than stuck, and says so. rewind check gives each perturbed schedule ten times as long as schedule 0 took, at least a minute, and reports a stuck schedule the same way. --status timed-out lists such runs:

$ rewind ls --status timed-out
d887cc181cc8a557  timed-out          309 steps  spin

Keep the run directory tidy

Runs live under ~/.local/share/rewind, or REWIND_HOME:

$ REWIND_HOME=elsewhere rewind ls
62a024334bb23811  exited:0          6560 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 2)
3b8804c10ca07001  exited:2          5164 steps  mylib-0.3.0 (fork of f0572500bc597078 at 5005, schedule 1)
f0572500bc597078  exited:2          5145 steps  mylib-0.3.0

$ REWIND_HOME=elsewhere rewind remove 62a02433
removed 62a024334bb23811
rewind: `rewind gc` removes the pages no run uses any more

remove takes a run with every run forked from it. To remove every fork and keep the runs they came from, run rewind ls | awk '/fork of/ {print $1}' | xargs rewind remove. prune --identical removes forks that ran exactly as an older one did.

What to read next

Design: how the machine is made deterministic, and its limits.
The case studies: these tools on bugs in real projects.

Tutorial: advanced features

The runs

Find the line a thread was on
